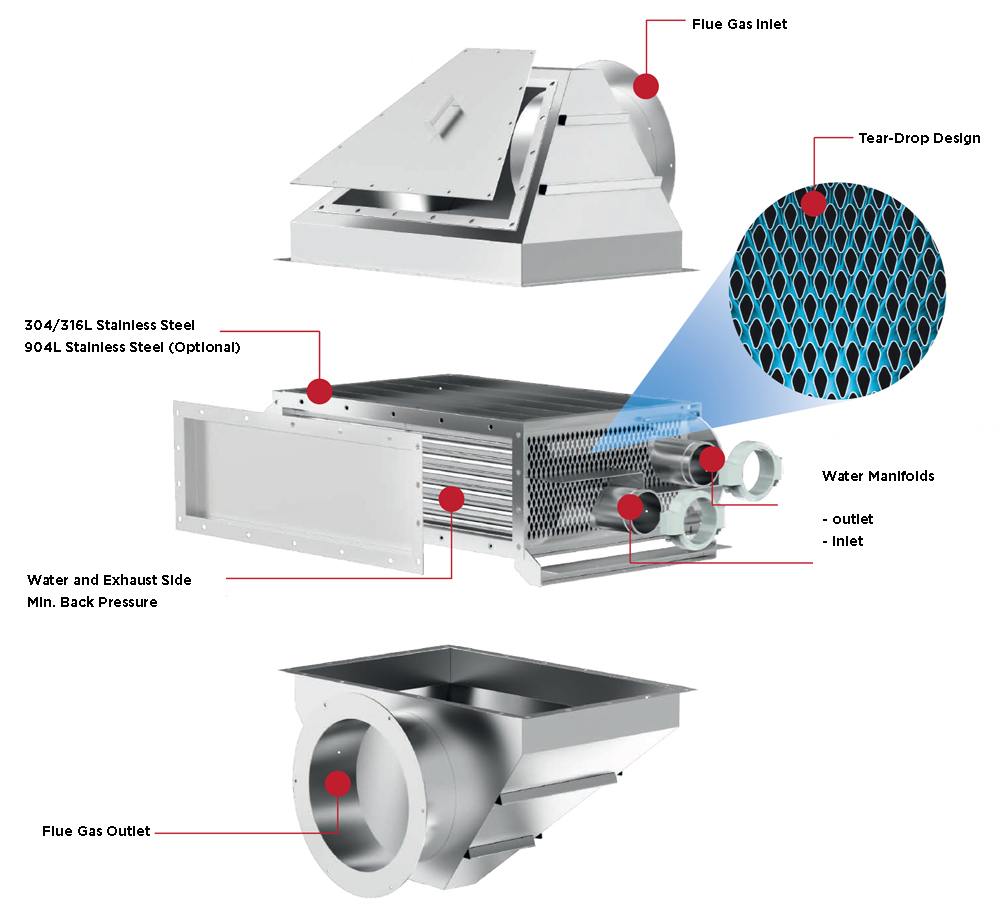

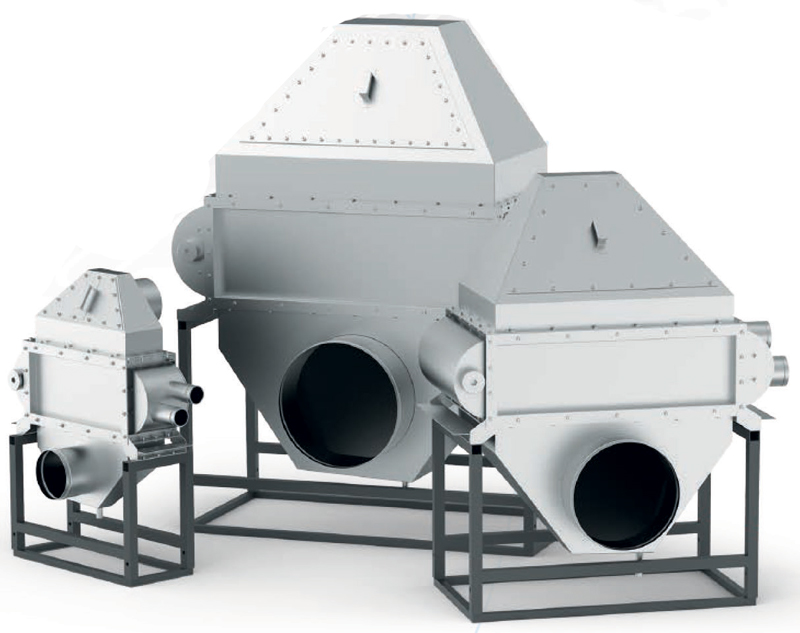

Economiser

The heat carried by waste gases is in the form of both sensible heat (energy due to gas temperature) and latent heat (condensation energy). The heat exchanger units that recover the heat, that is carried by the waste gases and thrown into the atmosphere, by heating the required water are called Economisers.

Features & Advantages
  • High heat transfer coefficient with unique "Tear-Drop" pipe profile
  • Maximum System Efficiency
  • Minimum Pressure Drop
  • AISI 316L Stainless Steel Construction
  • High efficient in variable loads with proportional control
  • Customer-Specific Design
  • Integrated Control and Energy Monitoring System
  • Heat Recovery (Energy) Performance Guarantee
  • Easy installation with compact design
  • Short Payback Period
Hizmetler Hizmetler
Hizmetler

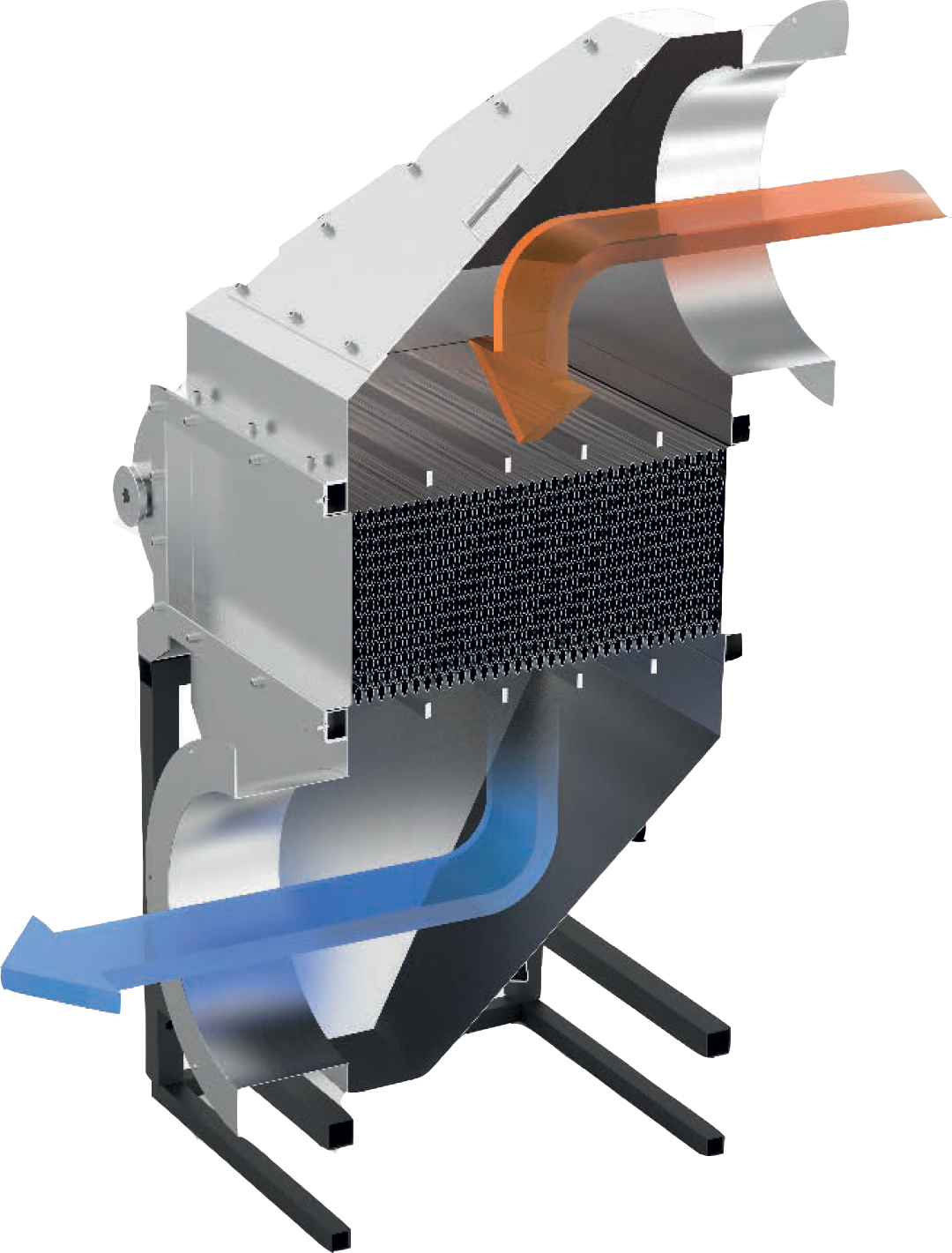

Condensing Economizer

The heat exchanger units that recover both sensible heat and latent, that is carried by the waste gases and thrown into the atmosphere, by heating the required water are called Condensing Economizers. Significant amount of heat recovered in condensing economizers is achieved by condensation of water vapor discharged by waste gases. The direction of gas flow and condensing water discharge are therefore critical in system design.

Advantages
  • Long Life Stainless Steel Construction
  • High Amount of Heat (Sensible+Latent) Recovery
  • Easy Maintenance
  • Low Payback Period
  • Minimum Pressure Drop Advantages
Hizmetler
Hizmetler

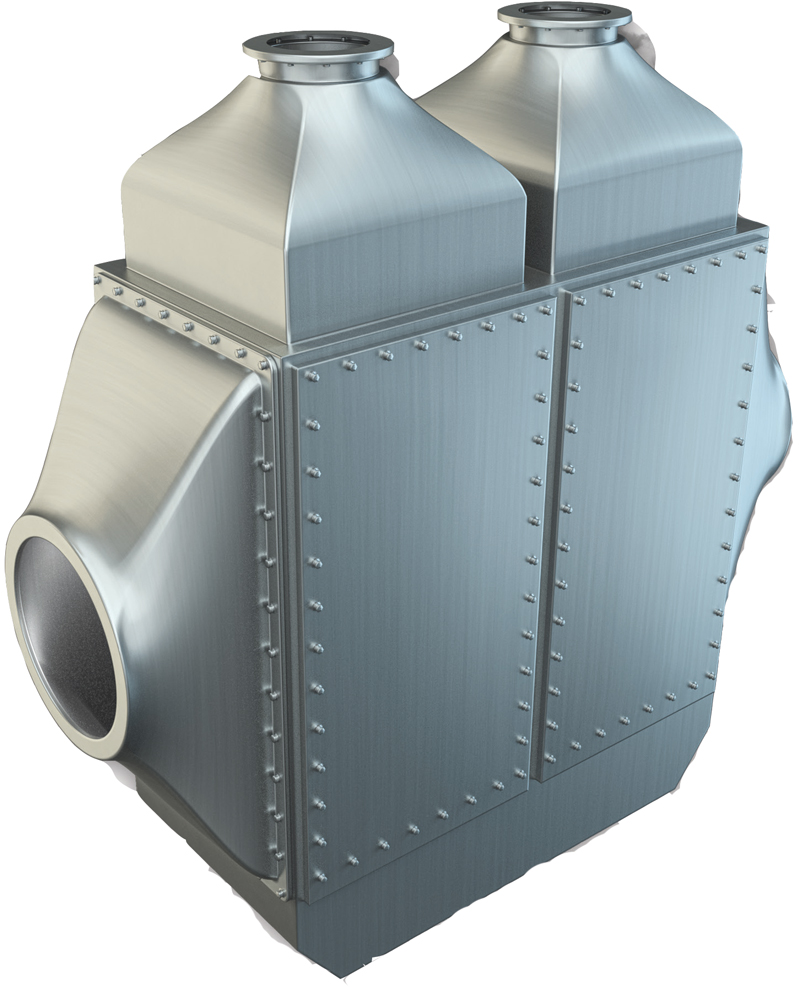

Recuperator

The heat exchanger units that recover both sensible and latent heat, that is carried by the waste gases and thrown into the atmosphere, by heating the required air are called Recuperators. As both the fluids which are heat source and being heated are in gas form (air), the heat transfer surface and accordingly the device is larger relatively, therefore should be used as a heat recovery solution at more specific applications.

Features & Advantages
  • Customer-Specific Design>
  • Low back pressure
  • Condensing - Non-Condensing
  • Integrated Control and Energy Monitoring System
  • Heat Recovery (Energy) Performance Guarantee
  • Maximum System Efficiency
  • High efficient in variable loads with proportional control
  • Short Payback Period
Potential Application Areas
  • Heating Of Burner Feeding Air
  • Heating Of Drying Air
  • Heating Of Furnace Circulation Air
  • Heating Of Medium
  • Meeting Process Hot Air Requirement
Hizmetler

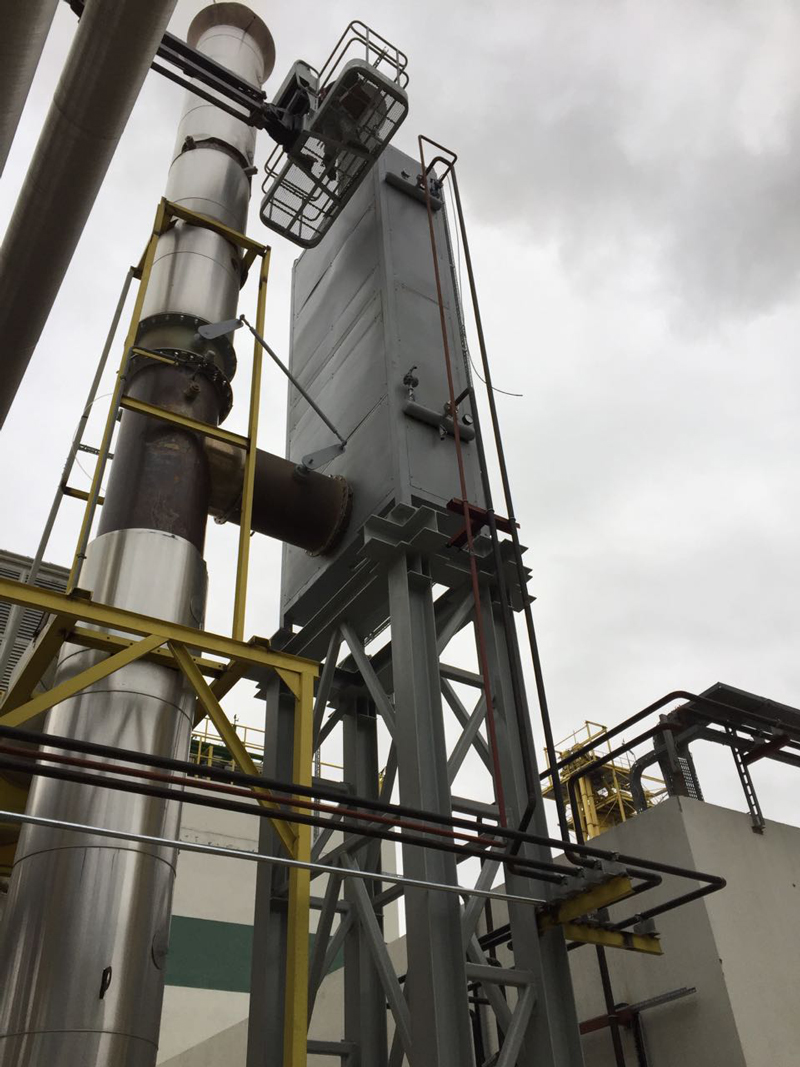

Waste Heat Boiler

The heat exchanger units that generate steam/hot oil/hot water with the heat energy carried by the waste gases are called Waste Heat Boilers. They are especially preferred when the waste heat source is at high temperature and at high flow rate. ESCON is leader in designing of waste heat boilers with a low back pressure, high efficient, fully proportional automatic control system and 72 hours unattended.

Features & Advantages
  • Ease of installation and application with upright type design
  • Material Selection Suitable For Waste Gas Characteristics
  • Minimum Pressure Loss
  • High efficient in variable loads with proportional control
  • Integrated Control and Energy Monitoring System
  • Heat Recovery (Energy) Performance Guarantee
  • 72h unattended operation
  • Customer-Specific Design
  • Short Payback Period
Potential Application Areas
  • Power Systems
  • Gas Engine
  • Gas Turbine
  • Tunnel/Rotary/Vertical Furnaces
  • Process Pits
  • Specific Combustion Processes
